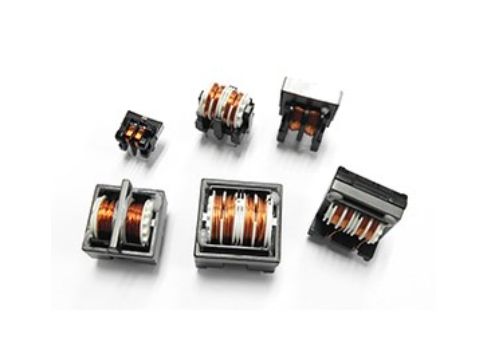

共模電感器

<< 返回上一頁

產(chǎn)品說明

Series	Inductance (mH)	Rated Current (A)
LFU09H	0.7~43.2	0.1~1.0
LFU09V	0.7~43.2	0.1~1.0
LFU1005V	0.7~13.6	0.5~2.3
LFU1606V	2.1~22.0	0.6~2.2
LFO20V	1.2~33.0	0.3~2.0
LFO24V	3.8-44.2	0.4-2.0
LFZ20H	1.8~47.0	0.3~2.0
LFZ24V	2.3~62.0	0.3~2.4
LFZ24H	2.3~62.0	0.3~2.4
LFZ28V	2.3~78.0	0.6~4.3
LFZ28H	2.3~78.0	0.6~4.3
LFZ35V	2.7~48.0	1.1~5.0
LFZ35H	2.7~48.0	1.1~5.0
HFO20V	1.6~40.0	0.3~2.0
HFZ20H	2.5~62.0	0.3~2.0
HFZ24V	2.9~78.0	0.3~2.4
HFZ24H	2.9~78.0	0.3~2.4
CKI24H	3.5-63.0	0.5-2.5

Series	Inductance (mH)	Rated Current (A)
LFU09H	0.7~43.2	0.1~1.0
LFU09V	0.7~43.2	0.1~1.0
LFU1005V	0.7~13.6	0.5~2.3
LFU1606V	2.1~22.0	0.6~2.2
LFO20V	1.2~33.0	0.3~2.0
LFO24V	3.8-44.2	0.4-2.0
LFZ20H	1.8~47.0	0.3~2.0
LFZ24V	2.3~62.0	0.3~2.4
LFZ24H	2.3~62.0	0.3~2.4
LFZ28V	2.3~78.0	0.6~4.3
LFZ28H	2.3~78.0	0.6~4.3
LFZ35V	2.7~48.0	1.1~5.0
LFZ35H	2.7~48.0	1.1~5.0
HFO20V	1.6~40.0	0.3~2.0
HFZ20H	2.5~62.0	0.3~2.0
HFZ24V	2.9~78.0	0.3~2.4
HFZ24H	2.9~78.0	0.3~2.4
CKI24H	3.5-63.0	0.5-2.5
